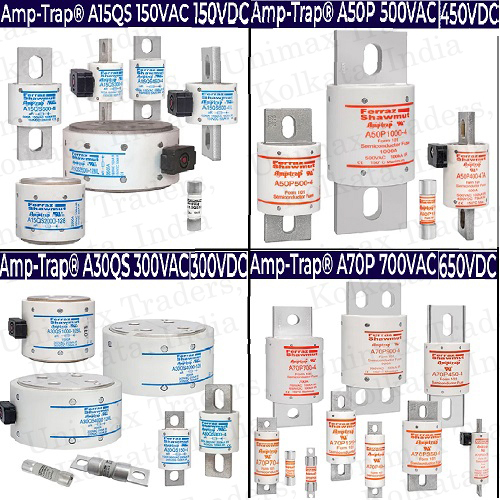

Ferraz Shawmut Mersen High Speed Time Delay Fuse Ul Fuse

Name: Ferraz Shawmut Mersen High Speed Time Delay Fuse Ul Fuse
Brand: UNIMAX TRADERS
Price: 1500 INR
Availability: InStock

Price 1500 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Ferraz Shawmut Mersen High Speed Time Delay Fuse Ul Fuse Specification

Efficiency
99%

IP Rating
IP20

Humidity %
95% RH max

Insulation Material
Ceramic

Feature
High interrupting rating, time-delay characteristic

Shape
Cylindrical

Surface Finish
Smooth / Polished

Operating Temperature
-40°C to 85°C

Overheating Protection
YES

Mounting Type
Bolt Mount

Connector Type
Knife Blade

Product Type
High Speed Time Delay Fuse

Application
Circuit protection in industrial control panels, semiconductor devices

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
700 V AC

Energy Consumption
Low

Output Type
Fuse Link

Color
White with Metallic End Caps

Dimension (L*W*H)
114 mm x 22 mm x 22 mm

Weight
120 g

Input Voltage
700 V

Phase
Single Phase

Size
22 x 114 mm

Material
Ceramic, Metal

Connection Type
Knife Blade/Tag

No Of Poles
1

Standard
UL248-13

Compliance
UL Recognized, RoHS Compliant

Current Rating
125 A

Contact Material
Silver Plated Copper

Vibration Resistance
Yes

Storage Temperature
-40°C to 90°C

Breaking Capacity
200 kA

Response Time
Time Delay (High Speed)

Interrupt Rating
200 kA at 700V AC

RoHS Compliance
Yes

Fuse Class
gR (semiconductor protection)

End Connection Type
Blade

Arc Suppression
High

Ferraz Shawmut Mersen High Speed Time Delay Fuse Ul Fuse Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
kolkata

Payment Terms
Cash in Advance (CID)

Main Export Market(s)
Asia

Main Domestic Market
All India

About Ferraz Shawmut Mersen High Speed Time Delay Fuse Ul Fuse

Ferraz Shawmut, now known as Mersen, offers a diverse range of fuses for various industrial and power applications, including Class J (e.g., AJT) and Class gG/aM (e.g., D213098) types, as well as specialized multi-meter fuses (FSM series) and Class C fuses for motor controllers. Key details for these fuses include their Amp rating, Voltage rating (AC/DC), Class (like J, gG, aM, C), Standards met (UL, CSA, IEC), Interrupt rating (kA), and Fuse speed (time-delay or fast-acting).

Reliable Circuit Protection for Demanding Applications

This fuse offers exceptional reliability for industrial and semiconductor protection circuits, supporting up to 125 A at 700 V AC. Its high interrupt rating and time-delay characteristics safeguard sensitive components during current surges. The smooth, durable ceramic and metal construction with IP20 protection withstands harsh industrial conditions, including high humidity and wide temperature variations.

Engineered for Efficiency and Compliance

Designed to meet UL Recognized and RoHS standards, this fuse balances environmental responsibility and operational excellence. The high efficiency (99%), low energy consumption, and robust arc suppression make it an optimal choice for applications where uninterrupted service and safety are paramount.

FAQ's of Ferraz Shawmut Mersen High Speed Time Delay Fuse Ul Fuse:

Q: How does the high speed time delay feature benefit semiconductor protection?

A: The high speed time delay characteristic ensures rapid interruption during short circuits while allowing temporary inrush currents, protecting sensitive semiconductor components from nuisance tripping and damage during normal operation or power surges.

Q: What is the recommended installation process for the Ferraz Shawmut Mersen Time Delay Fuse?

A: Installation requires bolt mounting the fuse using its blade end connections in a compatible holder or panel. Ensure power is off before mounting, check that the rated voltage and current specifications are matched, and verify tight, corrosion-free connections for optimal performance.

Q: When should this fuse be used in industrial applications?

A: This fuse is ideal for use in circuits protecting semiconductor devices, power control panels, and equipment where high interrupt capacity, time-delay response, and high-speed protection are essential to minimize downtime and safeguard critical components.

Q: Where can this fuse be implemented for optimal results?

A: It is best implemented in industrial control panels, semiconductor device protection circuits, and any environment that demands high interruption ratings, such as manufacturing facilities, automation systems, and electrical distribution panels.

Q: What are the main benefits of its silver plated copper contacts and ceramic insulation?

A: Silver plated copper contacts offer excellent electrical conductivity and corrosion resistance for efficient performance and longevity, while ceramic insulation provides high dielectric strength and stability under extreme temperatures and humidity, ensuring safe, reliable operation.

Q: How does the fuse handle high humidity and vibration environments?

A: With a maximum humidity tolerance of 95% RH and engineered vibration resistance, this fuse maintains reliable protection even in challenging industrial settings prone to moisture and mechanical stresses.
