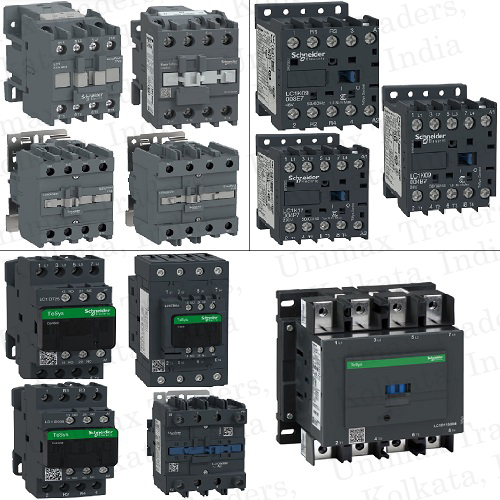

Schneider Electric Contactor Tesys Deca 3 Pole 9 Amp To 150 Amp

Price 600 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Schneider Electric Contactor Tesys Deca 3 Pole 9 Amp To 150 Amp Specification

Product Type
Contactor, Tesys Deca Series

Application
Switching and control of motors, lighting, heating, ventilation, and power circuits

Supply Voltage
24V to 415V AC/DC (dependent on model variant)

Dissipation Power
3.7 W at 220V AC (for 150A variant)

Operating Temperature
-5°C to +60°C

Power Consumption
8 to 24 VA (AC), 5 to 8 W (DC), depending on coil rating

Temperature Range
-40°C to +70°C (storage)

Input Voltage
24V, 48V, 110V, 220V, 380V, 415V AC/DC (as per variant)

Voltage Regulator Type
Built-in within coil (varies by model)

Size
Varies from 45mm x 85mm x 97mm to 120mm x 160mm x 170mm (approx., dependent on Amp rating)

Weight
From 0.45 kg to 2.5 kg (depending on rating)

Auxiliary Contacts
1NO+1NC (standard, more poles can be added)

Current Rating
9 Amp to 150 Amp

Mounting Type
DIN rail or screw mounting

Operating Position
Any position

Control Circuit Voltage Range
24V to 415V AC/DC

Coil Insulation Class
Class F

Number of Poles
3-Pole

Drop-out Voltage
20% to 75% of rated coil voltage

Shock Resistance
Up to 5 g (11 ms)

Electrical Life
Up to 1.8 million operations at AC-3 rated load

Contact Material
Silver alloy

Frequency
50/60 Hz

Mechanical Life
Up to 15 million operations

Protection Class
IP20 (finger safe)

Standards
IEC 60947-4-1, VDE0660, UL, CSA

Terminal Capacity
Flexible cable up to 35 mm² (for higher Amp variants)

Vibration Resistance
0.6 mm (10...55 Hz)

Enclosure Material
Flame retardant thermoplastic

Schneider Electric Contactor Tesys Deca 3 Pole 9 Amp To 150 Amp Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
kolkata

Payment Terms
Cash in Advance (CID)

Main Export Market(s)
Asia

Main Domestic Market
All India

About Schneider Electric Contactor Tesys Deca 3 Pole 9 Amp To 150 Amp

A power contactor is an electrically operated, high-power switch that safely controls heavy electrical loads like motors, lighting, and heating systems by making or breaking connections in a circuit. It functions similarly to a relay but is built to handle significantly higher currents and voltages than standard relays, allowing a low-power control signal to indirectly operate a high-power circuit. Contactors ensure safety by isolating the control system from the high-power load and often include features for overload protection and remote operation.

Versatile Performance

With a wide current rating (9A-150A) and support for various control and input voltages, the Tesys Deca contactor adapts to a multitude of industrial environments. It can operate across different mounting positions and settings, making it suitable for complex panels and demanding applications. Its flexible terminal capacity and multiple auxiliary contact configurations ensure easy integration.

Durability and Safety

Engineered to withstand harsh environments, this contactor boasts up to 15 million mechanical operations and 1.8 million electrical operations at AC-3 loads. Its flame-retardant enclosure and IP20 (finger safe) protection keep users safe, while its broad operating temperature range makes it reliable across diverse climates. Shock and vibration resistance enhance its suitability for industrial use.

Conforms to International Standards

Certified by IEC, VDE, UL, and CSA, the Tesys Deca contactor assures compliance with safety and quality standards on a global scale. These approvals support peace of mind when deploying the device in critical applications, regardless of location or regulatory environment.

FAQ's of Schneider Electric Contactor Tesys Deca 3 Pole 9 Amp To 150 Amp:

Q: How is the Schneider Electric Tesys Deca 3 Pole Contactor installed?

A: The Tesys Deca contactor can be installed using either DIN rail mounting or screw mounting. Its flexible design accommodates various panel layouts and space constraints, making it easy to integrate into new or existing systems.

Q: What are the benefits of using the Tesys Deca contactor for motor control?

A: This contactor offers reliable and efficient switching for motors, with high mechanical (up to 15 million) and electrical (up to 1.8 million at AC-3) operation lifespans. It also provides robust safety features, including IP20 finger-safe protection and a flame-retardant enclosure, minimizing operational risks.

Q: When should I consider choosing a model with higher current rating or more auxiliary contacts?

A: Select a higher current rating if your application involves larger motors or loads up to 150A. Additional auxiliary contacts are recommended for complex control schemes, where more signaling or interlocking functions are required.

Q: Where can the Tesys Deca 3 Pole Contactor be used?

A: It is suitable for use in industrial power circuits, motor control centers, lighting, heating, and ventilation systems. Thanks to its wide voltage and temperature range, it is adaptable to many environments across India and globally.

Q: What is the process for selecting the right contactor variant for my application?

A: Identify your motor or load current requirement, control circuit voltage, number of auxiliary contacts needed, and mounting preference. Ensure the model complies with your system's standards (IEC, UL, CSA), and select input voltage and terminal capacity appropriate for your installation.

Q: How does the built-in voltage regulator enhance operation?

A: The built-in voltage regulator ensures stable coil performance despite minor voltage fluctuations, which helps maintain reliable contactor operation, reducing nuisance trips and improving longevity.
